The CE marking on a medical device
The CE marking shows that a product meets the requirements of EU legislation and may circulate freely in the European Union. On a device certified by MCA it is followed by our number, 3132.
- Proportions taken from the drawing in MDR Annex V
- At least 5 mm high, unless the device is very small
- 3132 placed right after the CE marking
- On the device or its sterile packaging, the instructions for use and any sales packaging
Rules for affixing the CE marking
- Proportions

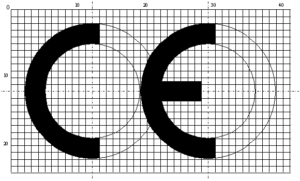

The marking keeps the proportions of the graduated drawing in the regulation when it is reduced or enlarged.
MDR Annex V - Minimum size
The vertical dimension is at least 5 mm. This minimum may be waived for small-scale devices.
MDR Annex V - Where it goes
Visibly, legibly and indelibly on the device or its sterile packaging. Where that is not possible or not suitable, on the packaging. It also appears in the instructions for use and on any sales packaging.
MDR Article 20(3) - Notified Body number
Where a Notified Body took part in the conformity assessment, its identification number follows the CE marking. The number also appears in promotional material that says the device meets the CE marking requirements.
MDR Article 20(5)
Six things on a medical device label
Scroll through the list, or point at a part of the label, to see where each one sits.
- 1CE marking
The manufacturer’s declaration that the device meets Regulation (EU) 2017/745.
MDR Article 20 - 2Notified Body number
Identifies the Notified Body responsible for the conformity assessment. For devices we certify, this is 3132.
MDR Article 20(5) - 3Unique Device Identifier
The device identifier and production data, as a barcode and in plain text, so the device can be traced.
MDR Article 27 · Annex VI - 4Medical device symbol
Shows that the product is a medical device, in every language.
MDR Annex I §23.2 · ISO 15223-1 - 5Reference and serial number
Catalogue number and serial number, shown with harmonised symbols, so a single device can be identified.
ISO 15223-1 - 6Manufacturer
Name and registered place of business of the legal manufacturer. Manufacturers outside the EU also show their authorised representative.
MDR Annex I §23.2
Flexible Video Endoscope
Model FVE-2800 · Insertion tube Ø 2.8 mm
Registered address, country
Using the mark and your certificate
Our procedures set out how certificates and the CE marking may be used, and what to tell us when something changes.
Certificate and CE mark usage
How you may use your MCA certificate and the CE marking with our number.
Open document FR.MED.51Change notification
Tell us about planned changes to a certified device or your quality system.
Open document Public registerCertificate search
Anyone can check the status of a certificate issued by MCA.
Open the register
